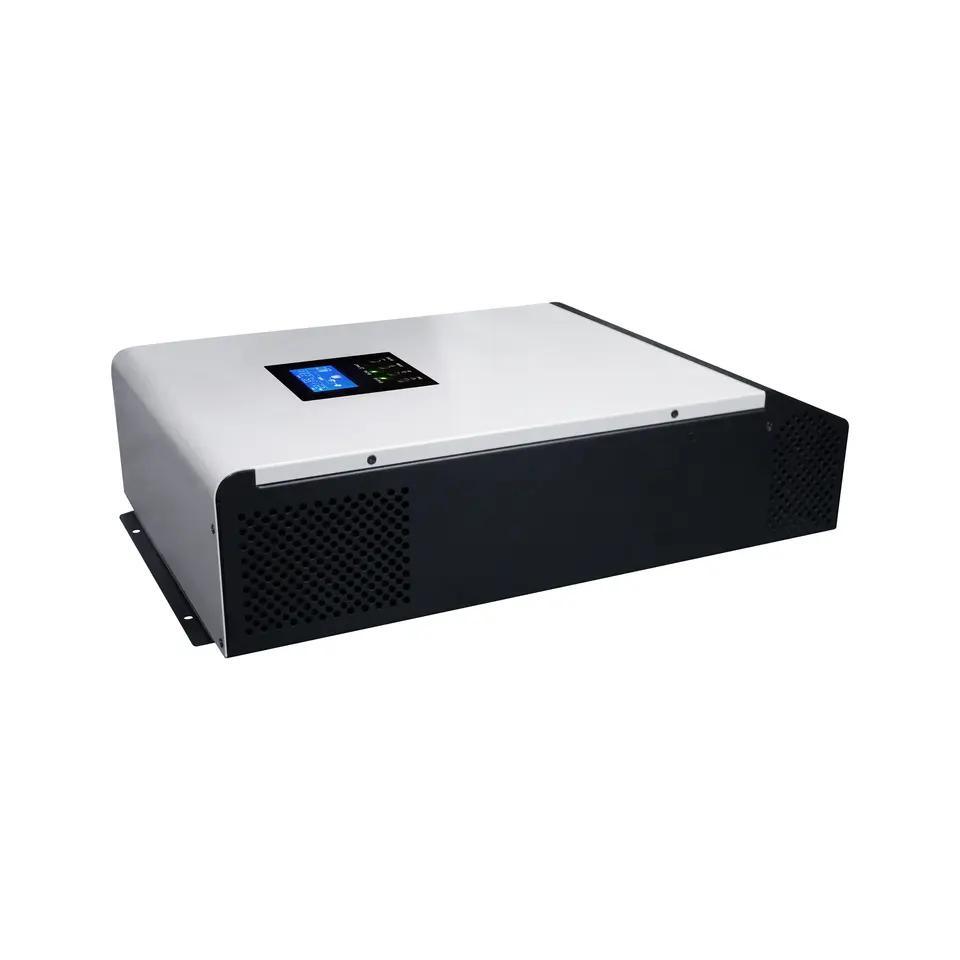

off Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kw

Availability:
Quantity:
  • 1 Year

  • Solar Inverter / Hybrid Inverter

  • Single

  • 5600W-8000W-11000W

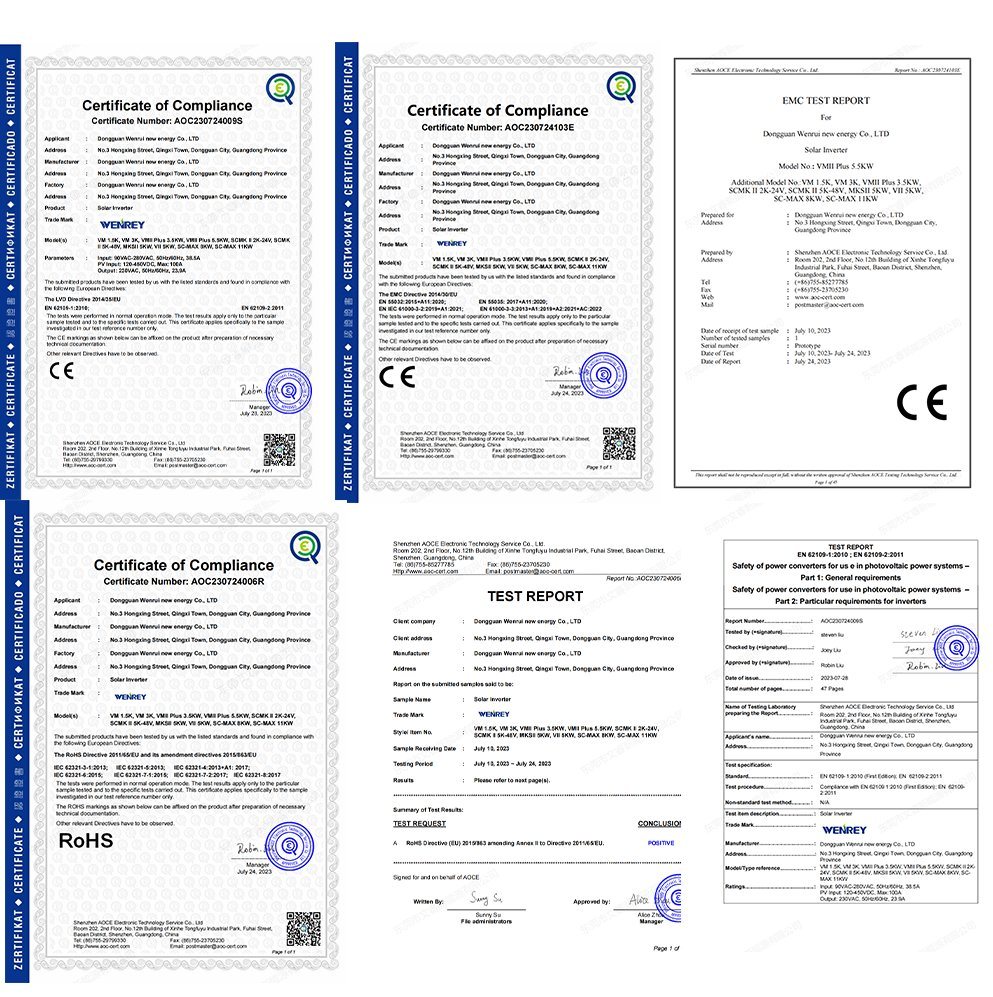

  • CE, ROHS, ISO9001

  • Wenrey

Product Description
Product Description
Overview
Essential details
Place of Origin: Guangdong, China Brand Name: WENREY

Model Number: MK SII 5KW Input Voltage: 220/230/240Vac

Output Voltage: 230V±5% Output Current: 90A

Output Frequency: 50/60HZ Output Type: Single

Size: 120*295*468 mm Type: DC/AC Inverters

Inverter Efficiency: 90% Certificate: CE Rohs

Warranty: 1 Year, 12 Months Weight: 11kg

Product name: MKSII Series Off Grid Inverter 5KW Inverter type: Off-grid Power Inverter

Protection: Short Circuit Protection Waveform: Pure Sine Wave

Transfer Time: 10ms(For Personal Computers)20ms(For Home Appliance)

Rated power: 5000VA/ 5000W

Parallel Capability: 9 Units

Maximum PV Array Power: 4500W

Battery Voltage: 48 VDC
Supply Ability
Supply Ability 500 Piece/Pieces per Day
Packaging & delivery
Packaging Details
Neutral packaging
There are a lot of foam to protect the product
Carton Dimension (W X H X D) mm:600*400*220
Gross Weight: 12kgs
support customized package

Port
SHENZHEN
Lead time:
Quantity(pieces) 1 - 10 11 - 50 51 - 100 >100
Lead time (days) 15 25 40 To be negotiated

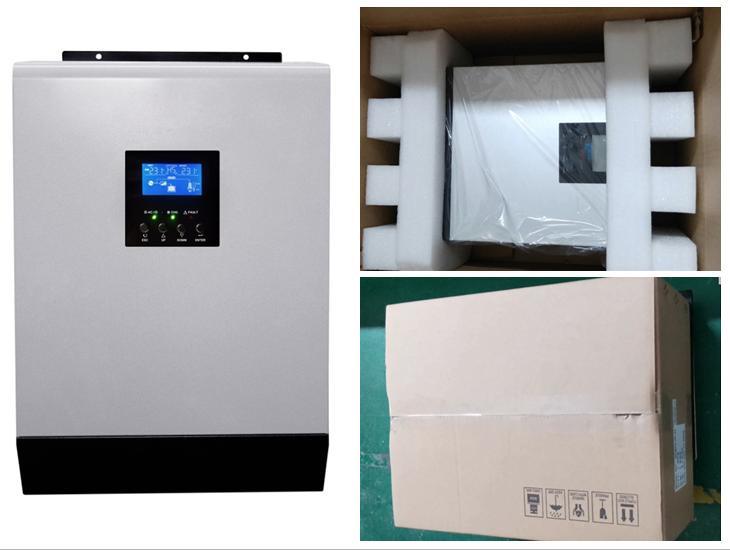

Detailed Photos

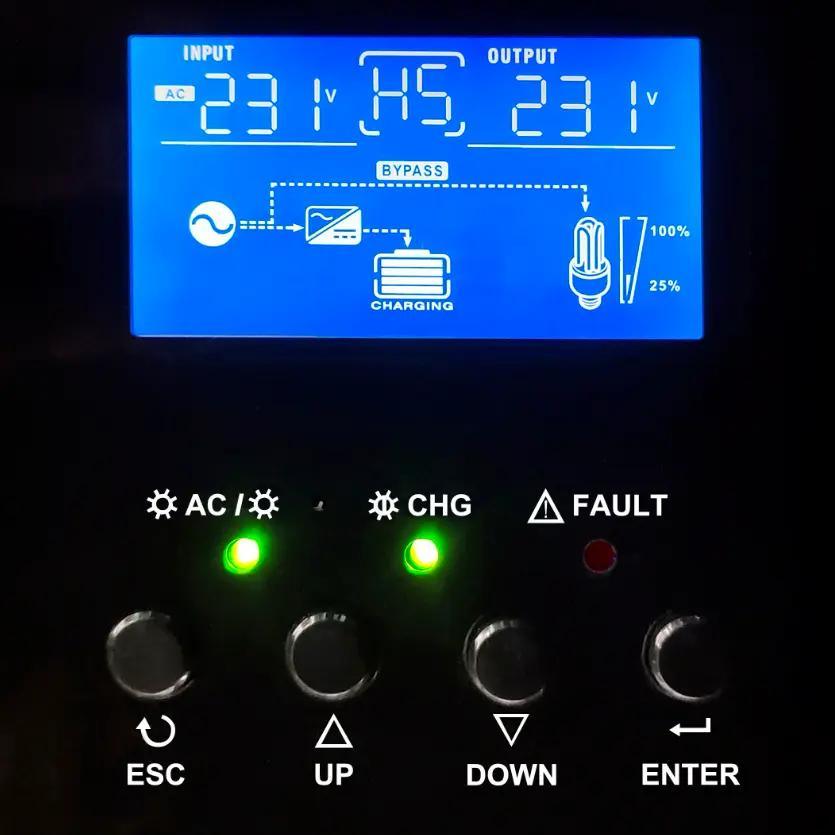

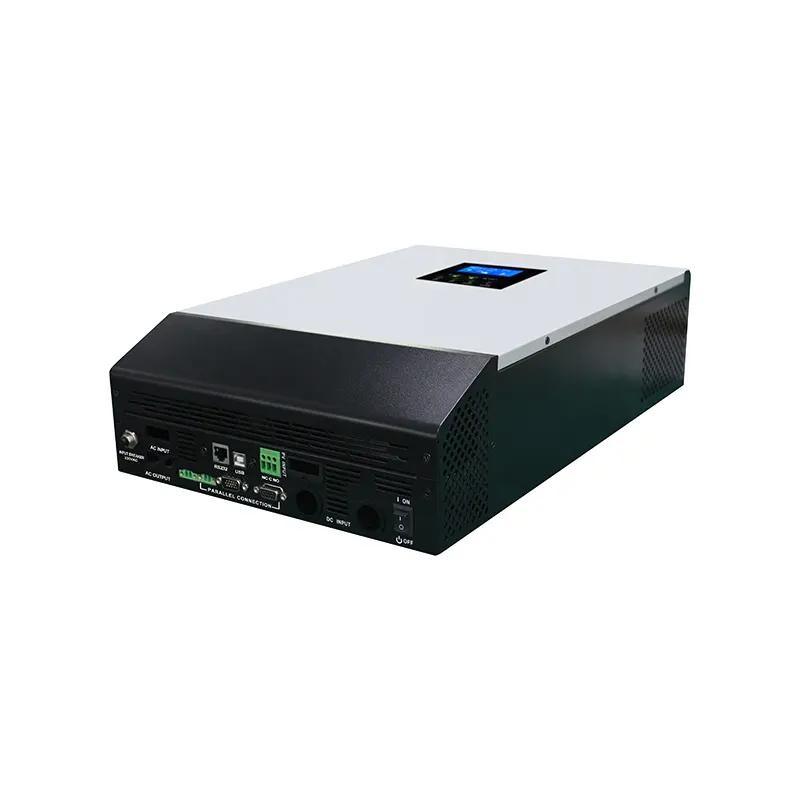

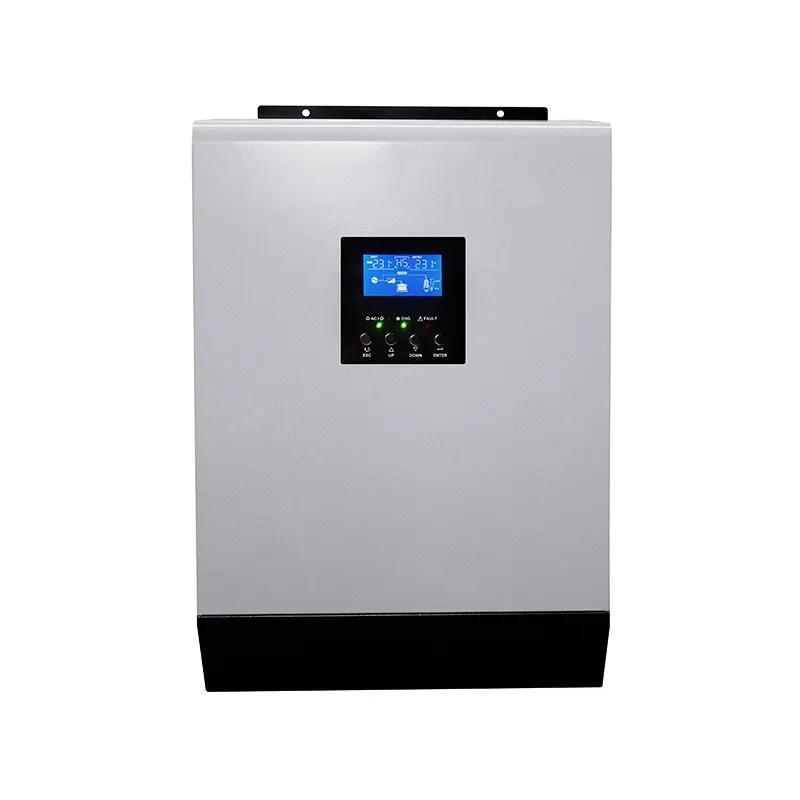

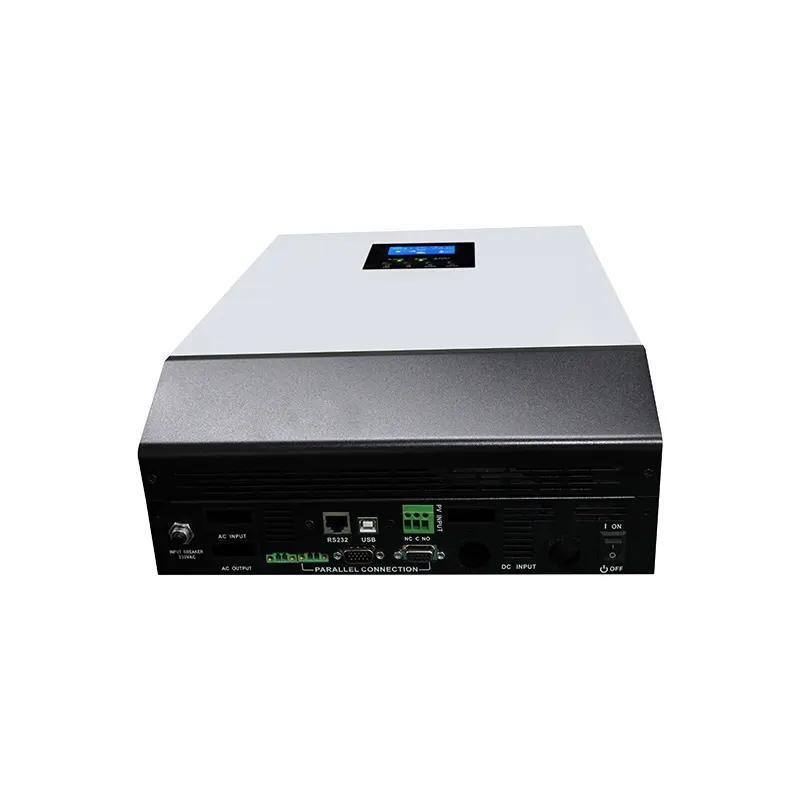

5kw 220v hybrid MPPT solar power system pure sine wave off grid inverter

Technical Specifications

MODEL MK SII 5KW
Rated Power 5000VA/5000W
Parallel capacity Yes, 9 units
Input

Voltage 230VAC
Voltage range 170-280 VAC (for PC) or 90-280 VAC (for Home Appliance)
Frequency Range 60/50Hz (Auto sensing)
Output
AC Voltage Regulation (Bat Mode) 230VAC+-5%
Surge Power 10000VA
Efficiency (Peak) 90%
Transfer Time 10 ms (for Personal Computer): 20ms(for Home Appliances)
Wave form Pure sine wave
Battery
Batery Voltage 48VDC
Floating Charging Voltage 54VDC
Overcharge Protection 66VDC
Solar Charger &AC Charger
Solar Charger Type MPPT
Maximum PV Array Power 4500W
Max PV Array Open Circuit Voltage 450VDC
MPP Range@Operating Voltage 120-430VDC
Maximum Solar Charge Current 80A
Maximum AC Charge Current 80A
Maximum Charge Current 80A
Physical
Dimension (L*W*H) mm 120*295*468 mm
Net Weight (kgs) 11kgs
Environment
Humidity 5-98% Relative Humidity (Non-condending)
Operating Temperature '0°C to 55 °C
Storage Temperature '-15°C to 60 °C
off Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kw off Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kw off Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kw off Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kw off Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kw off Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kw Professional design is specifically customized for small and-medium enterprises
servers, rack mount, tower mount, etc. a variety of installation, online double
conversion design, DSP digital technology, pure sine wave, excellent
performance, high-grade appearance, which present the integration of advanced
technology and traditional products.
Our Services

Following the concept of "customer first", the company has established a standardized and high-quality customer service system to provide customers with timely and efficient technical support, as well as pre-sales and after-sales service.
Standardized and efficient service is the core competitiveness of the company. The customer service center is set up in the headquarters, with the help of nationwide service outlets and professional technical engineers, timely responding to customer demand.At present, it has set up 7 regional offices and 31 service outlets in China to respond to customers' needs at any time and provide fast and high-quality services.

off Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kw

off Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kwoff Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kwoff Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kwoff Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kwoff Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kw
off Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kwoff Grid Hybrid Battery Solar Inverter Pure Sine Wave Energy Storage System 5kw 8kw

FAQ

1. who are we?
We are based in Guangdong, China, start from 2013,sell to Africa(25.00%),Mid East(20.00%),South America(10.00%),Western Europe(10.00%),Southeast Asia(10.00%),North America(5.00%),Central America(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),South Asia(2.00%),Southern Europe(2.00%),Eastern Asia(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
UPS Power, Inverter, Battery

4. why should you buy from us not from other suppliers?
over 12 years UPS R&D manufaturing experience, ISO 9001:2008 and ISO14001 certificated factory, UPS pass CE and RoHS certification.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese,German,French,Russian
