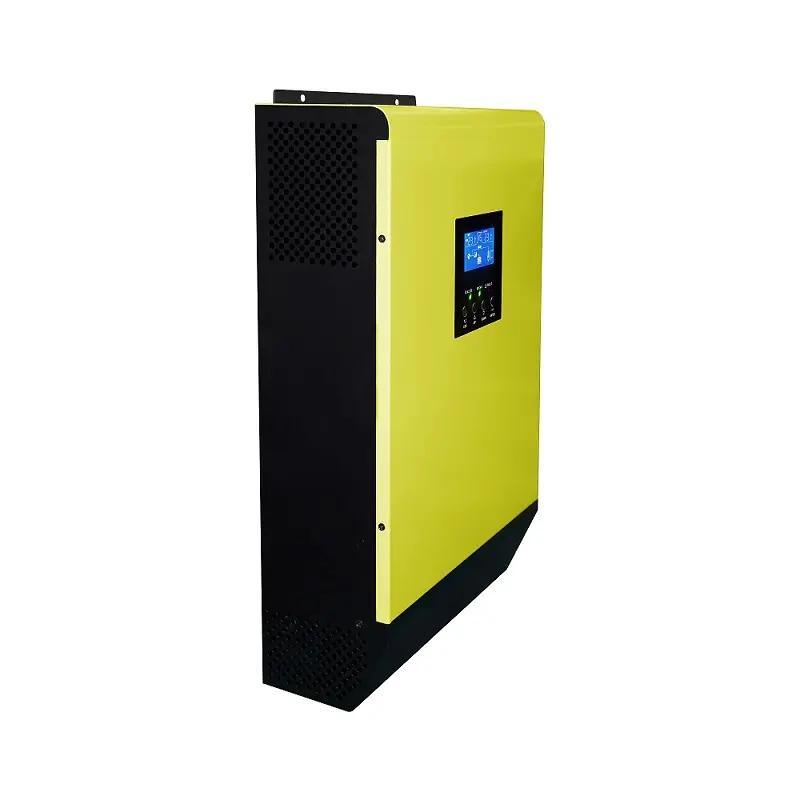

5kw Hybrid Solar Inverter on/off Grid Solar Grid-Tie Inverter Single-Phase Output 220V Parallel Type with Charger and MPPT Controller

Place of Origin: Guangdong, China Brand Name: WENREY

Model Number: MK SII 5KW Input Voltage: 220/230/240Vac

Output Voltage: 230V±5% Output Current: 90A

Output Frequency: 50/60HZ Output Type: Single

Size: 120*295*468 mm Type: DC/AC Inverters

Inverter Efficiency: 90% Certificate: CE Rohs

Warranty: 1 Year, 12 Months Weight: 11kg

Product name: MKSII Series Off Grid Inverter 5KW Inverter type: Off-grid Power Inverter

Protection: Short Circuit Protection Waveform: Pure Sine Wave

Transfer Time: 10ms(For Personal Computers)20ms(For Home Appliance)

Rated power: 5000VA/ 5000W

Parallel Capability: 9 Units

Maximum PV Array Power: 4500W

Battery Voltage: 48 VDC

Supply Ability

Supply Ability 500 Piece/Pieces per Day

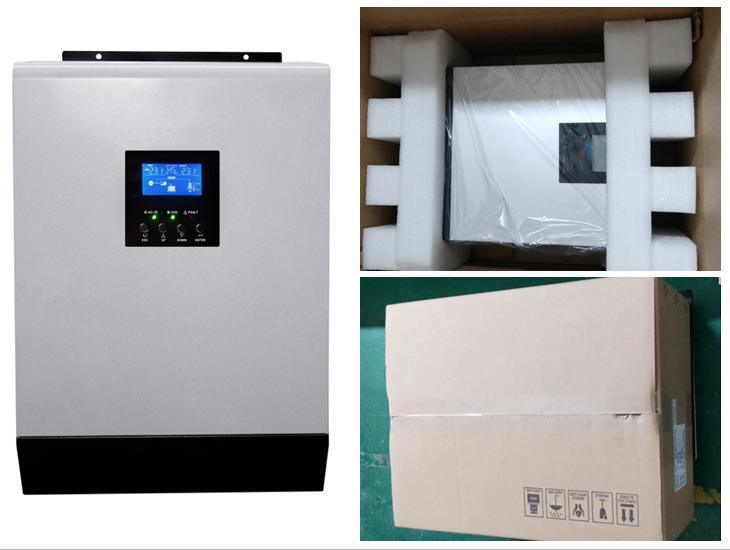

Packaging & delivery

Packaging Details
Neutral packaging
There are a lot of foam to protect the product
Carton Dimension (W X H X D) mm:600*400*220
Gross Weight: 12kgs
support customized package
Port
SHENZHEN
Lead time:

Quantity(pieces)	1 - 10	11 - 50	51 - 100	>100
Lead time (days)	15	25	40	To be negotiated

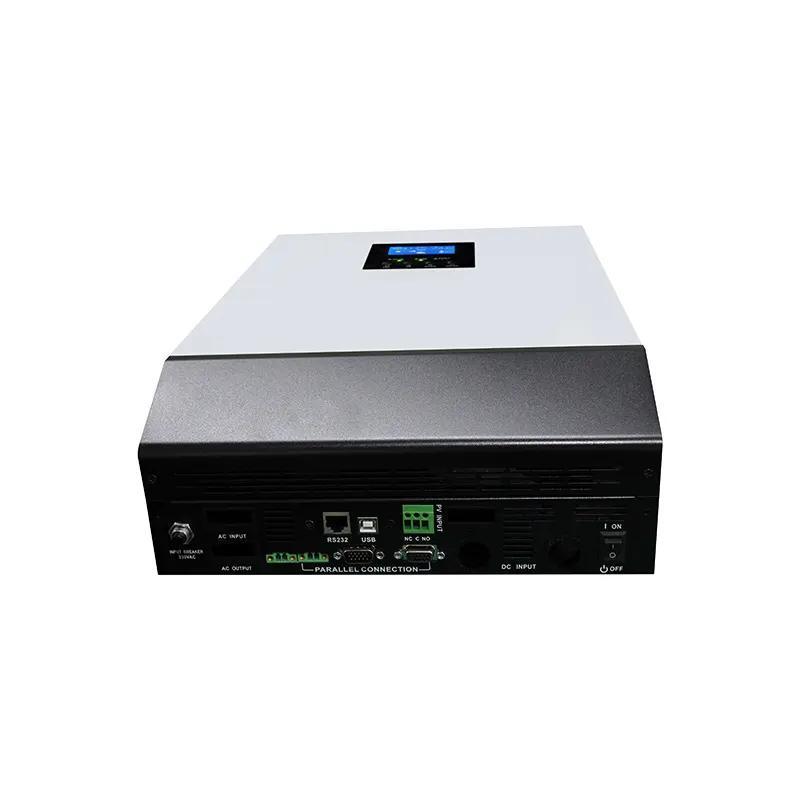

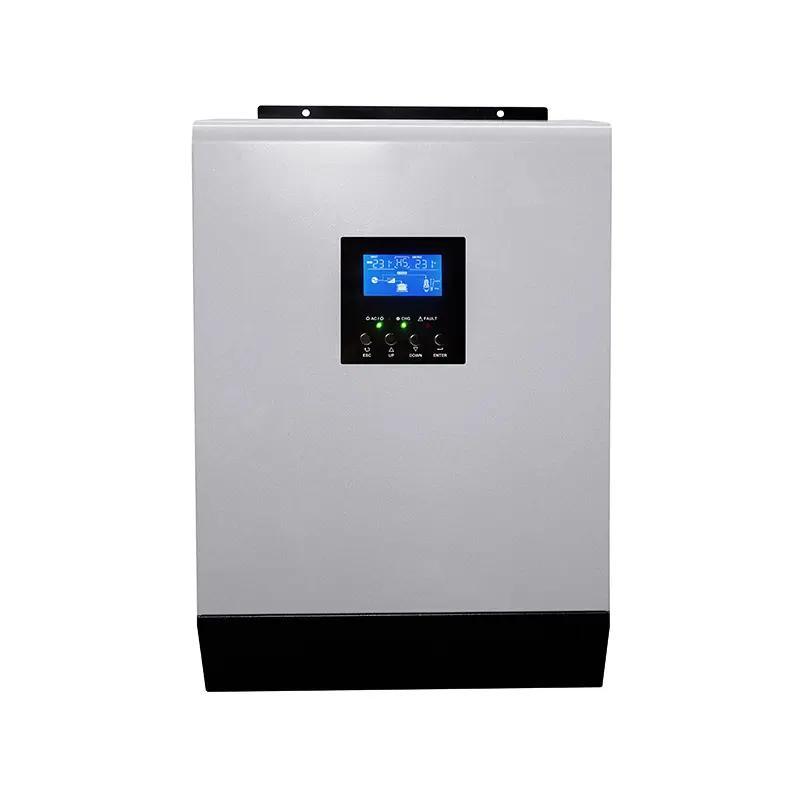

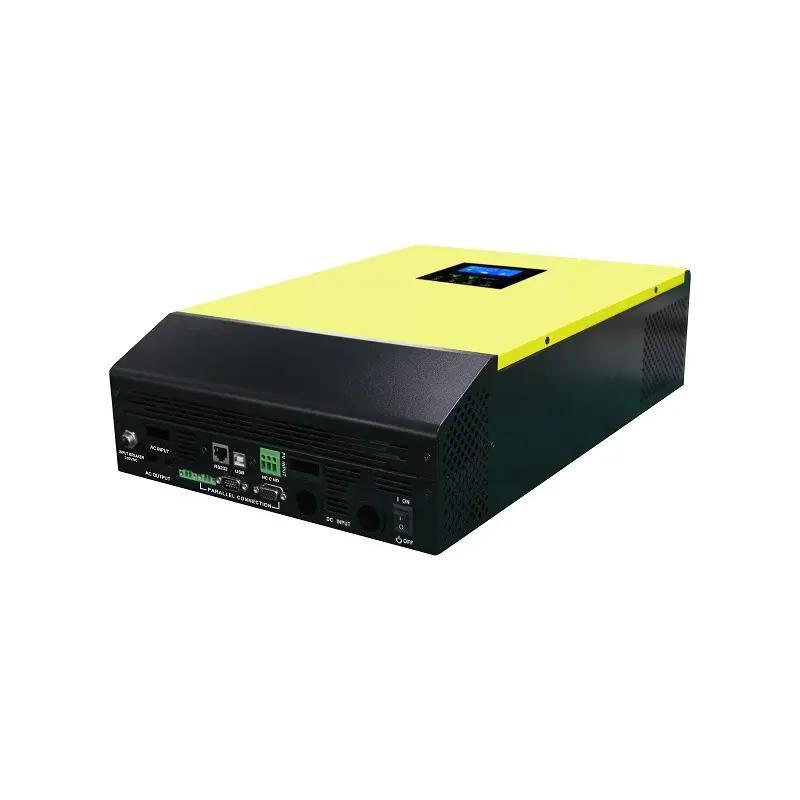

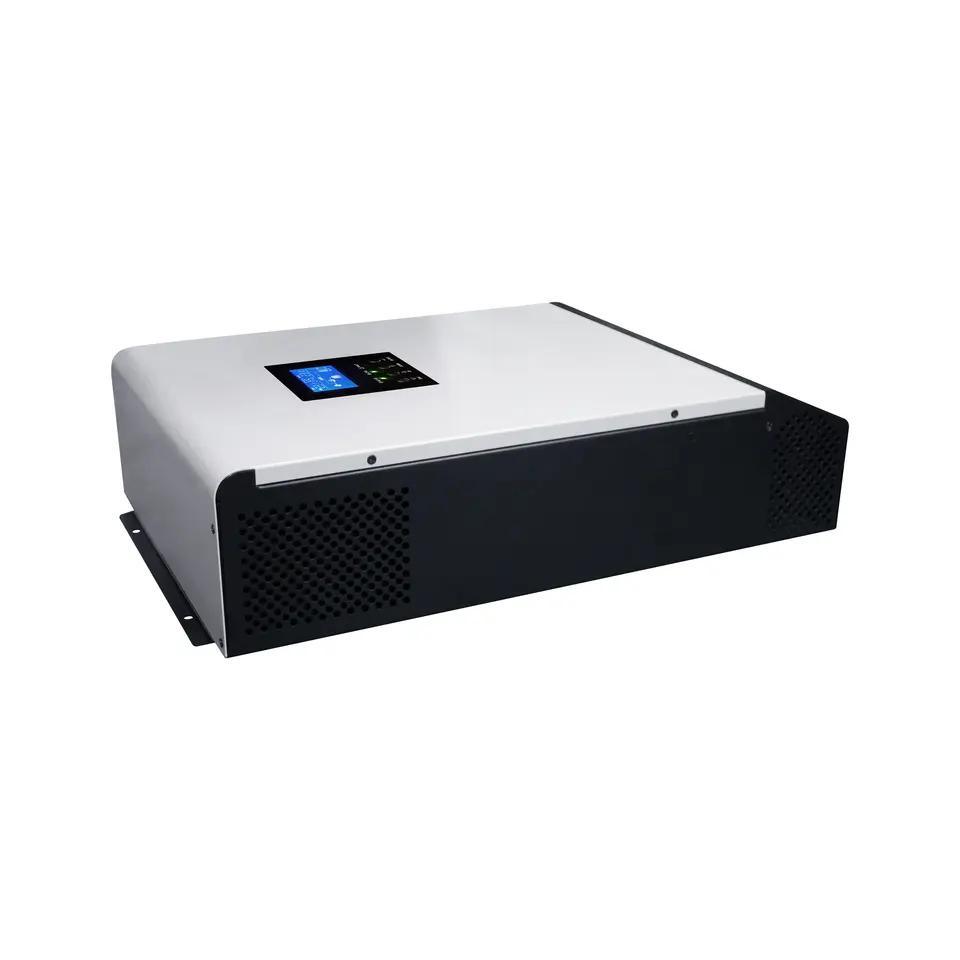

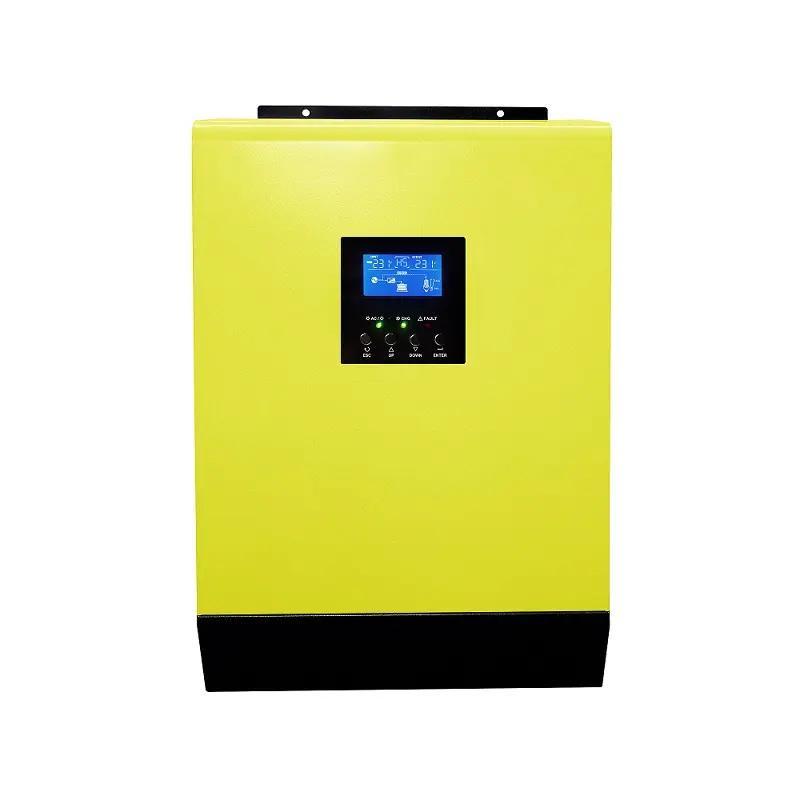

Detailed Photos

5kw 220v hybrid MPPT solar power system pure sine wave off grid inverter

Technical Specifications

MODEL	MK SII 5KW
Rated Power	5000VA/5000W
Parallel capacity	Yes, 9 units
Input
Voltage	230VAC
Voltage range	170-280 VAC (for PC) or 90-280 VAC (for Home Appliance)
Frequency Range	60/50Hz (Auto sensing)
Output
AC Voltage Regulation (Bat Mode)	230VAC+-5%
Surge Power	10000VA
Efficiency (Peak)	90%
Transfer Time	10 ms (for Personal Computer): 20ms(for Home Appliances)
Wave form	Pure sine wave

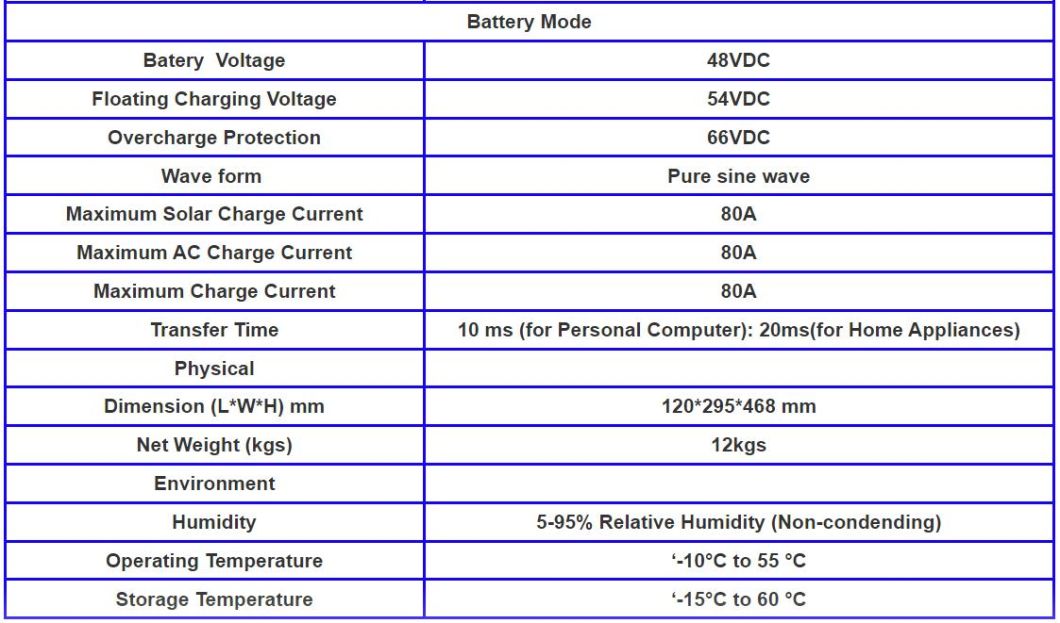

Battery
Batery Voltage	48VDC
Floating Charging Voltage	54VDC
Overcharge Protection	66VDC
Solar Charger &AC Charger
Solar Charger Type	MPPT
Maximum PV Array Power	4500W
Max PV Array Open Circuit Voltage	450VDC
MPP Range@Operating Voltage	120-430VDC
Maximum Solar Charge Current	80A
Maximum AC Charge Current	80A
Maximum Charge Current	80A
Physical
Dimension (L*W*H) mm	120*295*468 mm
Net Weight (kgs)	11kgs
Environment
Humidity	5-98% Relative Humidity (Non-condending)
Operating Temperature	'0°C to 55 °C
Storage Temperature	'-15°C to 60 °C

Professional design is specifically customized for small and-medium enterprises
servers, rack mount, tower mount, etc. a variety of installation, online double
conversion design, DSP digital technology, pure sine wave, excellent
performance, high-grade appearance, which present the integration of advanced
technology and traditional products.

Our Services

Following the concept of "customer first", the company has established a standardized and high-quality customer service system to provide customers with timely and efficient technical support, as well as pre-sales and after-sales service.
Standardized and efficient service is the core competitiveness of the company. The customer service center is set up in the headquarters, with the help of nationwide service outlets and professional technical engineers, timely responding to customer demand.At present, it has set up 7 regional offices and 31 service outlets in China to respond to customers' needs at any time and provide fast and high-quality services.

1. who are we?
We are based in Guangdong, China, start from 2013,sell to Africa(25.00%),Mid East(20.00%),South America(10.00%),Western Europe(10.00%),Southeast Asia(10.00%),North America(5.00%),Central America(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),South Asia(2.00%),Southern Europe(2.00%),Eastern Asia(1.00%). There are total about 101-200 people in our office.

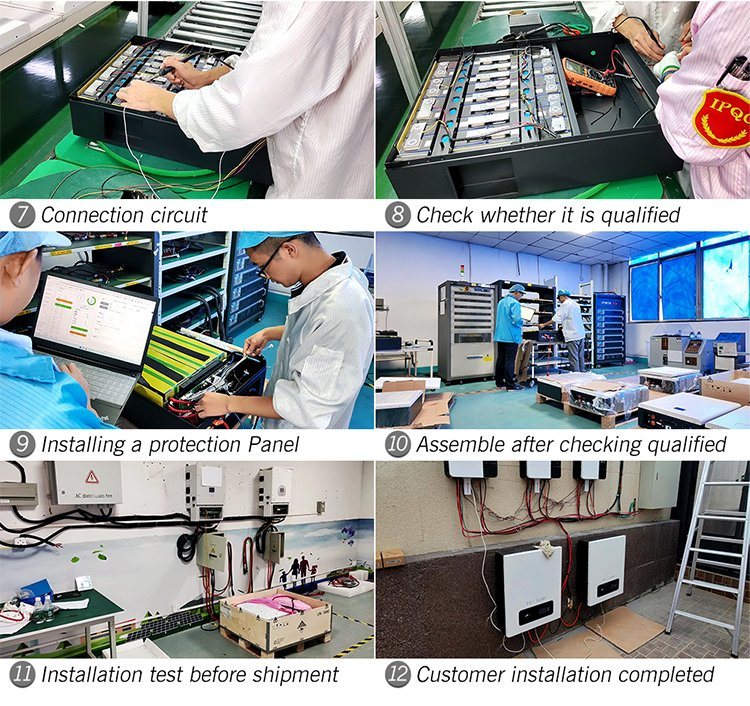

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
UPS Power, Inverter, Battery

4. why should you buy from us not from other suppliers?
over 12 years UPS R&D manufaturing experience, ISO 9001:2008 and ISO14001 certificated factory, UPS pass CE and RoHS certification.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese,German,French,Russian
