| Quantity: | |
|---|---|
1 Year
Solar Inverter / Hybrid Inverter
Single
5600W
CE, ROHS, ISO9001
Wenrey
| Quantity(pieces) | 1 - 10 | 11 - 50 | 51 - 100 | >100 |
| Lead time (days) | 15 | 25 | 40 | To be negotiated |

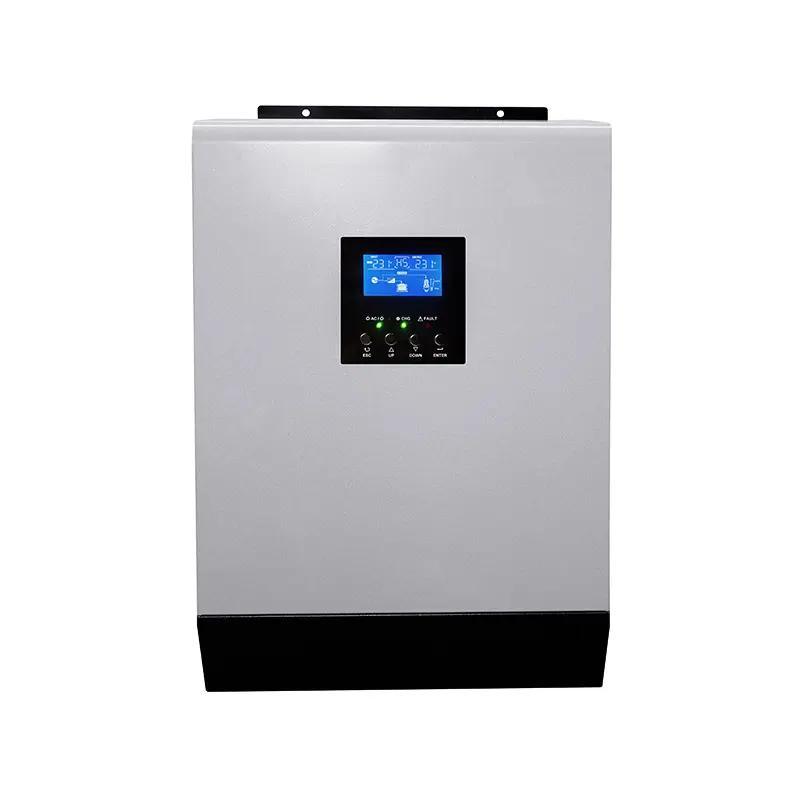

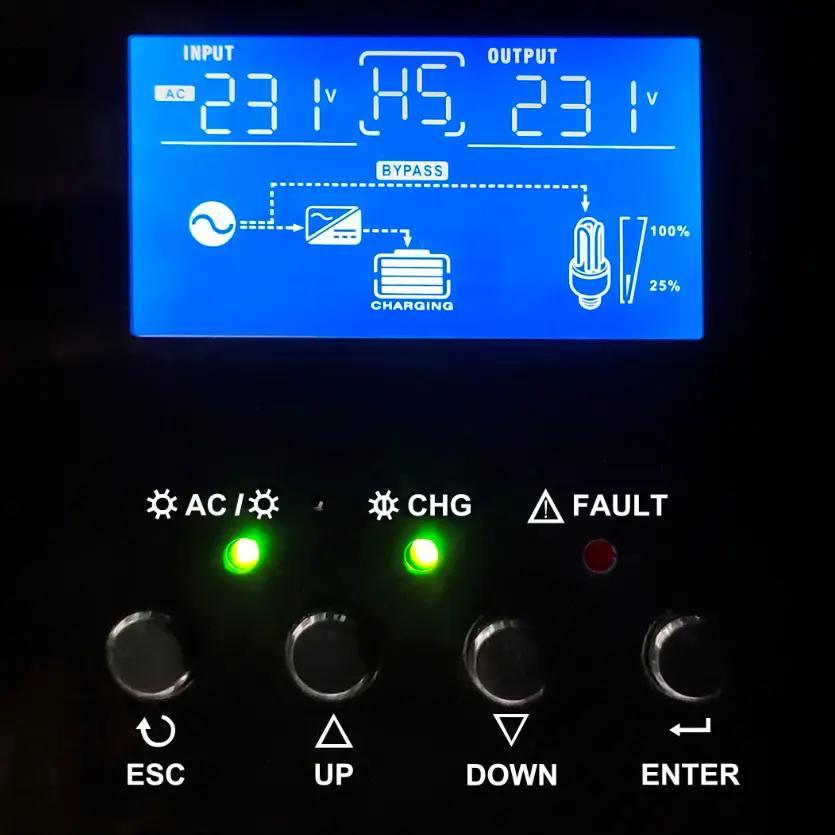

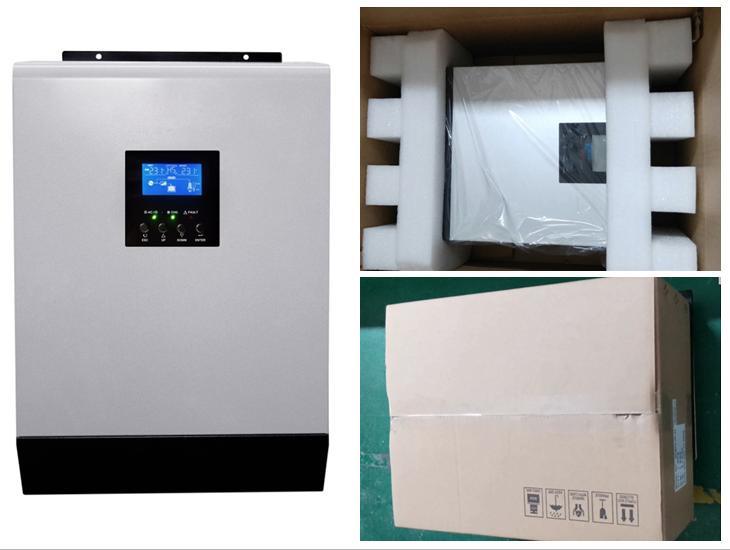

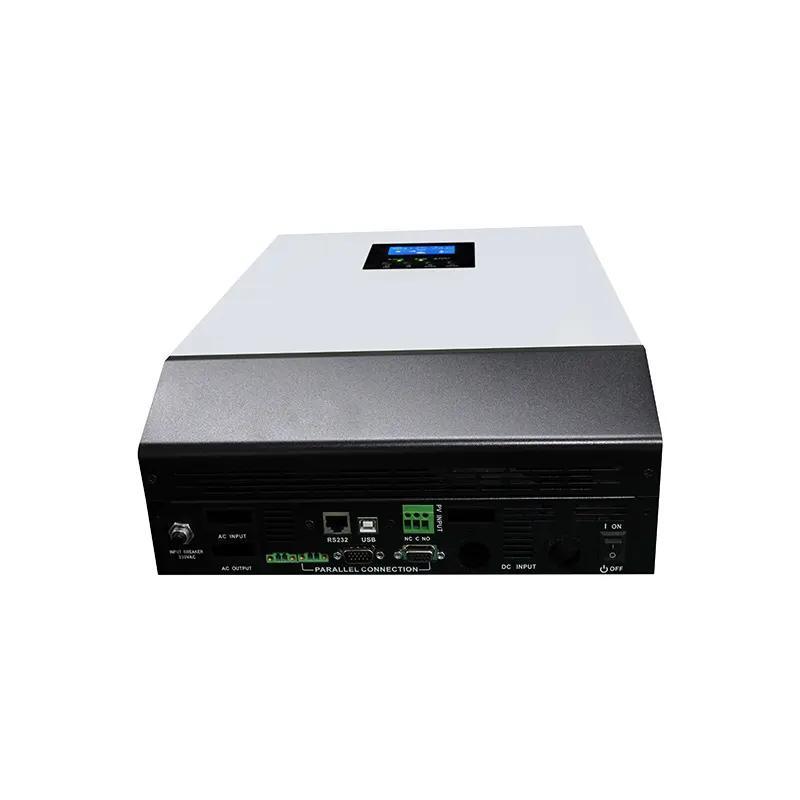

5kw 220v hybrid MPPT solar power system pure sine wave off grid inverter
Technical Specifications
| MODEL | MK SII 5KW |
| Rated Power | 5000VA/5000W |
| Parallel capacity | Yes, 9 units |
| Input |
|
| Voltage | 230VAC |
| Voltage range | 170-280 VAC (for PC) or 90-280 VAC (for Home Appliance) |
| Frequency Range | 60/50Hz (Auto sensing) |
| Output | |
| AC Voltage Regulation (Bat Mode) | 230VAC+-5% |
| Surge Power | 10000VA |
| Efficiency (Peak) | 90% |
| Transfer Time | 10 ms (for Personal Computer): 20ms(for Home Appliances) |
| Wave form | Pure sine wave |
| Battery | |
| Batery Voltage | 48VDC |
| Floating Charging Voltage | 54VDC |
| Overcharge Protection | 66VDC |
| Solar Charger &AC Charger | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 4500W |
| Max PV Array Open Circuit Voltage | 450VDC |
| MPP Range@Operating Voltage | 120-430VDC |
| Maximum Solar Charge Current | 80A |
| Maximum AC Charge Current | 80A |
| Maximum Charge Current | 80A |
| Physical | |
| Dimension (L*W*H) mm | 120*295*468 mm |
| Net Weight (kgs) | 11kgs |
| Environment | |
| Humidity | 5-98% Relative Humidity (Non-condending) |
| Operating Temperature | '0°C to 55 °C |
| Storage Temperature | '-15°C to 60 °C |
Professional design is specifically customized for small and-medium enterprises Following the concept of "customer first", the company has established a standardized and high-quality customer service system to provide customers with timely and efficient technical support, as well as pre-sales and after-sales service.
Standardized and efficient service is the core competitiveness of the company. The customer service center is set up in the headquarters, with the help of nationwide service outlets and professional technical engineers, timely responding to customer demand.At present, it has set up 7 regional offices and 31 service outlets in China to respond to customers' needs at any time and provide fast and high-quality services.
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Africa(25.00%),Mid East(20.00%),South America(10.00%),Western Europe(10.00%),Southeast Asia(10.00%),North America(5.00%),Central America(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),South Asia(2.00%),Southern Europe(2.00%),Eastern Asia(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?

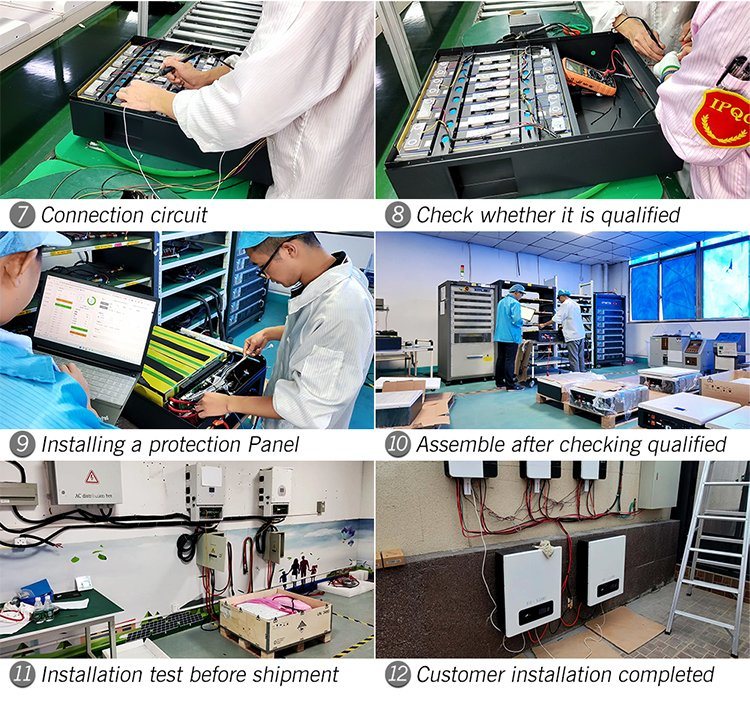

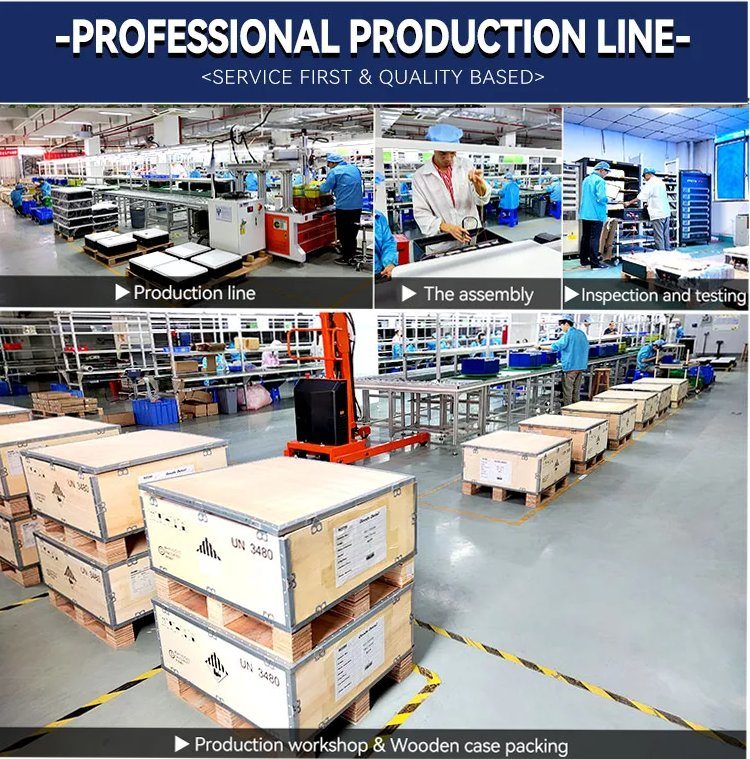

Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UPS Power, Inverter, Battery
4. why should you buy from us not from other suppliers?

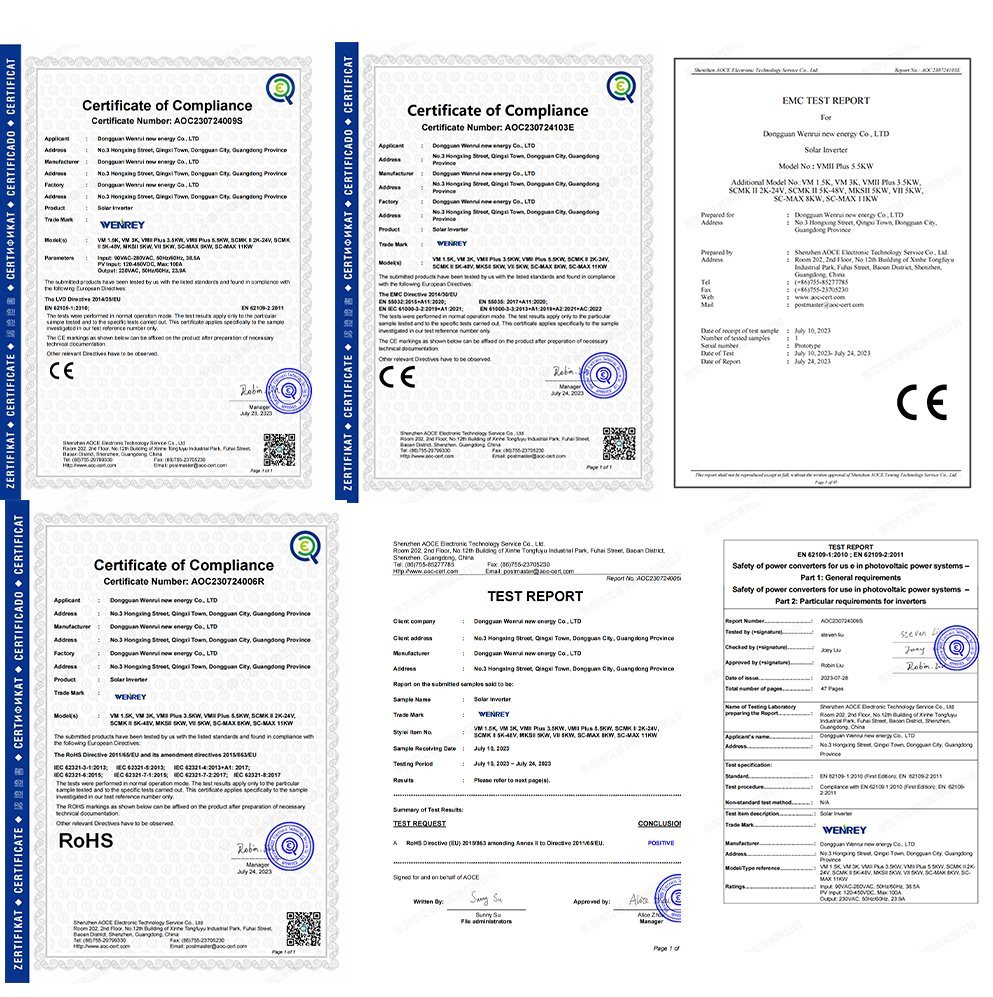

over 12 years UPS R&D manufaturing experience, ISO 9001:2008 and ISO14001 certificated factory, UPS pass CE and RoHS certification.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery;
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese,German,French,Russian
