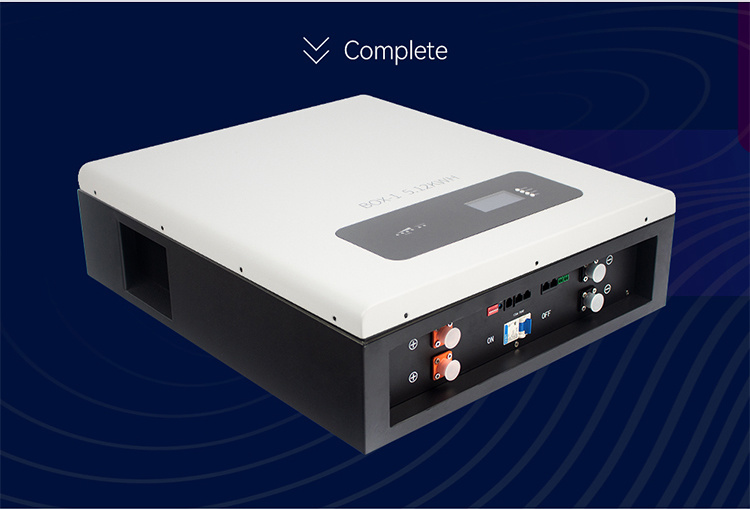

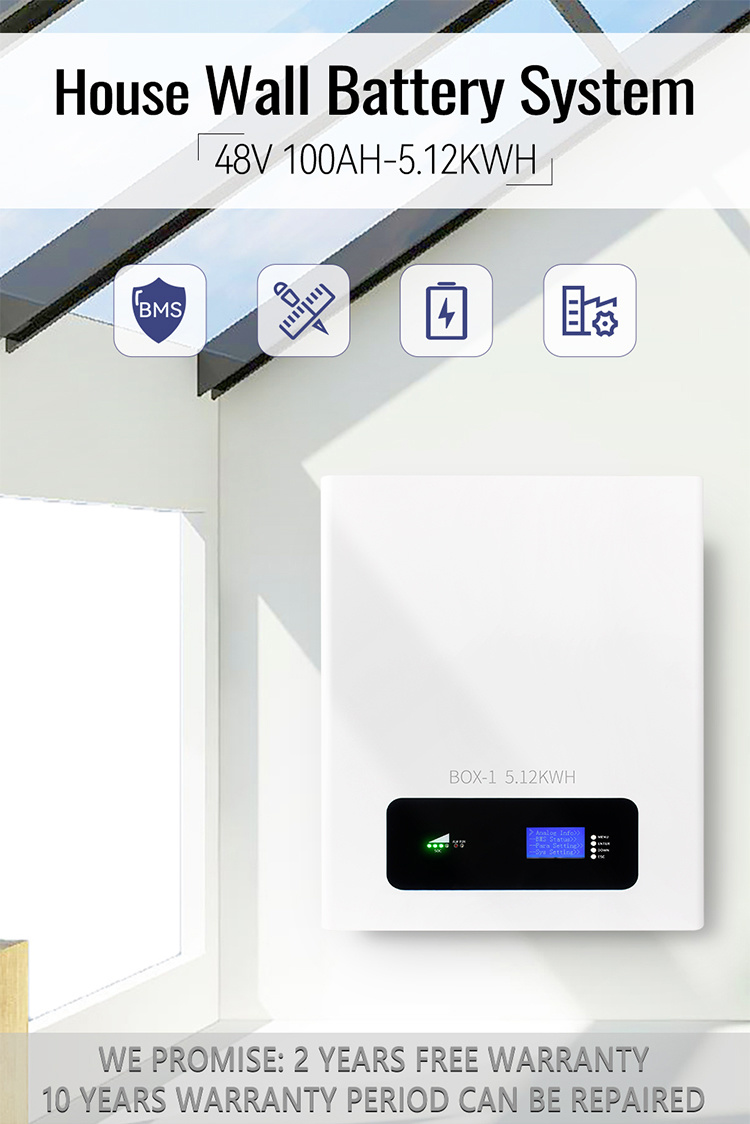

Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah

Availability:
Quantity:
  • Li-ion Battery

  • LFP

  • Yes

  • Medium

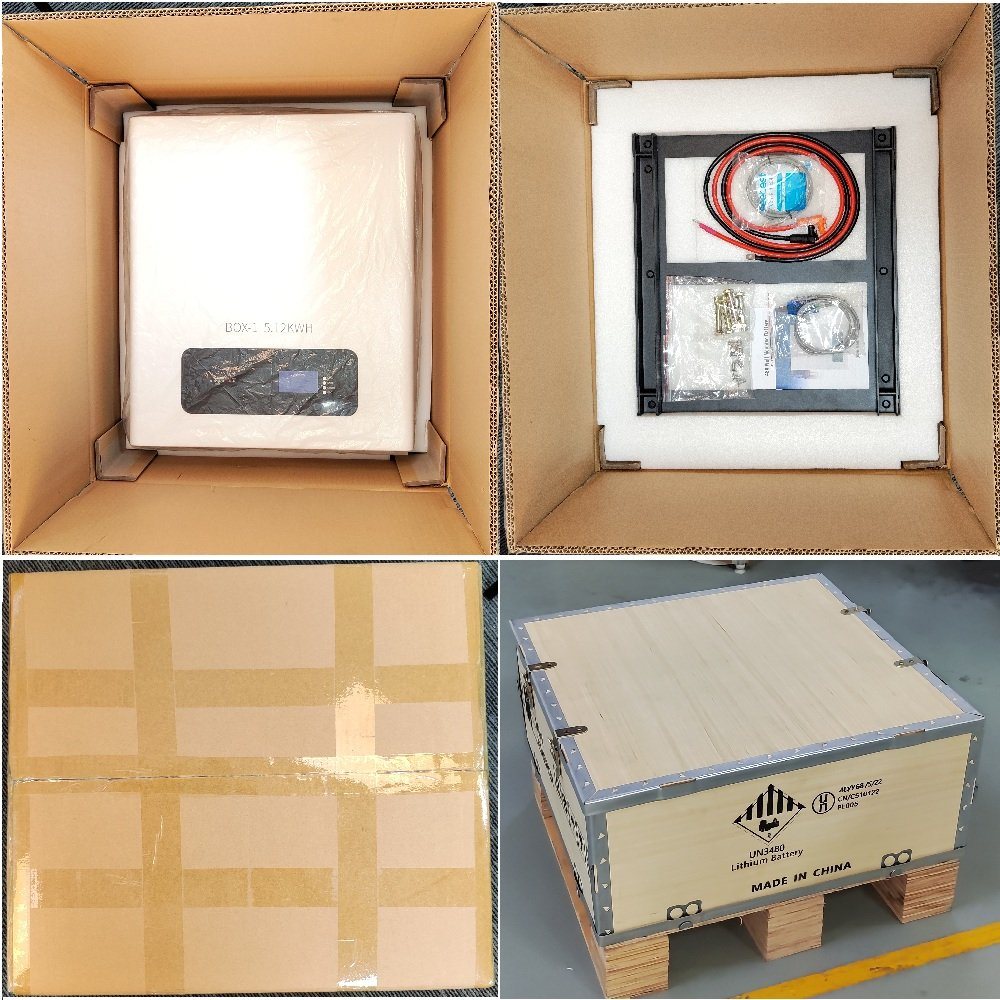

  • Sea Freight Cardboard Boxes

  • 600*500*195mm

Product Description

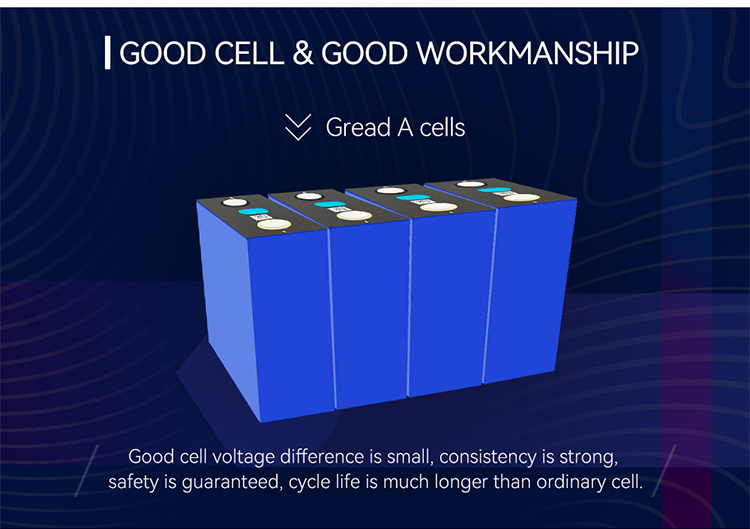

WENREY manufactures safe , grade A brand new & high performance LFP energy storage battery including UPS lifepo4 rack lithium ion battery ; wall mounted lithium battery; High volt/amp Lithium Battery Cabinet etc; Every cell could be tracked by QR codes and strickly tested before shipping.

Why choose WENREY as your supplier and partner?
* Competitive factory direct price
* Small MOQ
* Spot Supply for samples and dropshipping, bulk leadtime is 15-20 working days
* Excellent 18 hours online support from inquiry,installation,technical guide to aftersales
* UN38.3, MSDS, ROHS, IEC,  CE, ISO9001 are certified
* Professional team for OEM ODM custom service from inside to outside:
private logo, customized packaging, WIFI, Bluetooth, Communication Protocol, BMS function, high voltage or high current battery cabinet, free one stop solar energy system solution such as project design


To ensure proper use of the battery please read the manual carefully before using it.
Handling
Do not expose to, dispose of the battery in fire.
Do not put the battery in a charger or equipment with wrong terminals connected.
Avoid shorting the battery.
Avoid excessive physical shock or vibration.
Do not disassemble or deform the battery.
Do not immerse in water.
Do not use the battery mixed with other different make, type, or model batteries.
Keep out of the reach of children.
Charge and discharge
Battery must be charged in appropriate charger only.
Never use a modified or damaged charger.
Donot leave battery in charger over 24 hours.

Storage
Store the battery in a cool, dry and well-ventilated area.
Disposal
Regulations vary for different countries. Dispose of in accordance with local regulations.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

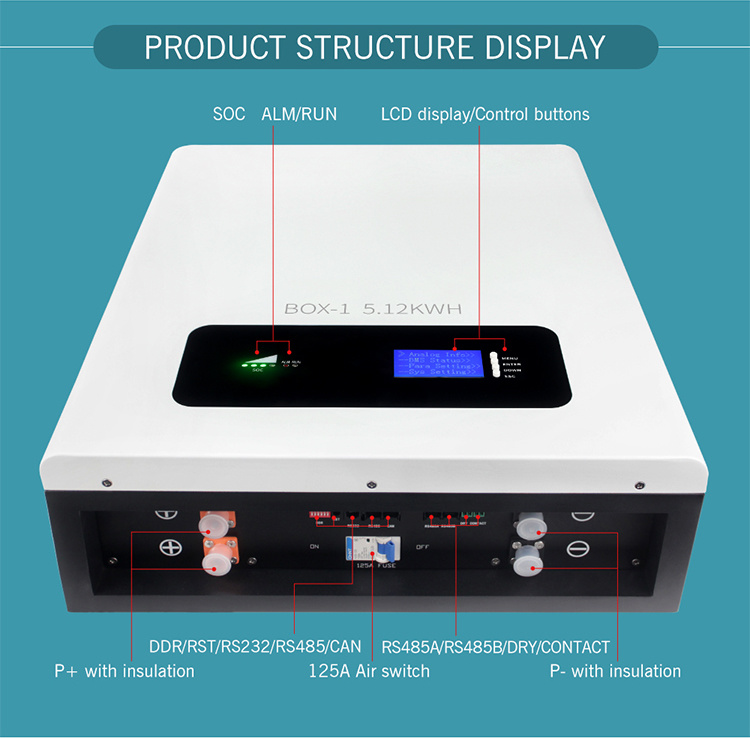

                                                      Products Details
-Parameters Table-
Model
BOX-1
BOX-2
BOX-3
Battery Type
LiFePO4(LFP)
Nominal Voltage(v)
51.2V
51.2V
25.6V
Nominal Energy(kWh)
5.12kWh
10.24kWh
5.12kWh
Nominal Capacity(Ah)
100Ah
200Ah
200Ah
Design Years
15 Years
Size
520×600×165mm
570×730×165mm
505×450×185mm
Weight
≤55kg
≤95kg
≤55kg
Cycle Life
≥6000 cycles
Operating Voltage Range
40V~58.4V
20V~29.2V
Charging Voltage
DC 58.4V
DC 29.2V
Operating Temperature
-10~55ºC
Warranty
10 Years (2 Years free warranty, rest 8 years pay actual repair costs)
Charge/Discharge Current(A)
Same Port Max. 100A
Internal Resistance
≤40mΩ
Self-Consumption
≤2.5W
Rated Voltage
51.2V
25.6V
Balance current
30~65(MA)
Communication Method
CAN/RS485/RS232(Optional)
Information Storage
500 Strip
Limiting
10/20A(Optional)

Solar Energy Storage System(Off Grid Solar System&Hybrid Solar System) from 5kwh to 225kwh

Lithium LiFePO4 Battery 51.2V 5.12kWh/10kWh wall battery are most popular and widely used in solar storage system(Off Grid Solar System&Hybrid Solar System ). Wall battery can be connected in Parallel to store more energy.

  Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah
Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah   Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah
  Lithium Solar Energy Storage Battery for Household LiFePO4 Pack 48 V 100ah
1: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
2: What can you buy from us?
A: lithium-ion single cell, battery pack, photovoltaic panel, indoor and outdoor solar energy storage power system, portable
energy storage power system, etc.
3: Can you have a sample order?
A: Yes, we welcome sample order to test and check quality.
4: What about the lead time?
A: Sample needs 10-15 days, mass production time needs 2-4 weeks, it depends on order quantity.
5: How about you payment and delivery items?
A: Payment items: By T/T, 30% for deposit, and balance all before shipment. For small amount, we also accept payment via PayPal, Western Union.
6: What kind of certificates could you provide for these batteries?
A: We have CE,CB,KC,MSDS,UN38.3 for most our current products, if It's custom-making design, usually no current certificates, we could apply for you if you need, but the related fees should be paid by your side, and if your order is big enough, certificate fees can be refunded.
