51.2V Solar Energy Storage System (Off Grid Solar System&Hybrid Solar System) From 5kwh to 225kwh

Availability:
Quantity:
  • Li-ion Battery

  • LFP

  • Yes

  • Large

  • Sea Freight Cardboard Boxes

  • Customized, 600*500*195mm/50kg

Product Description
Product Description

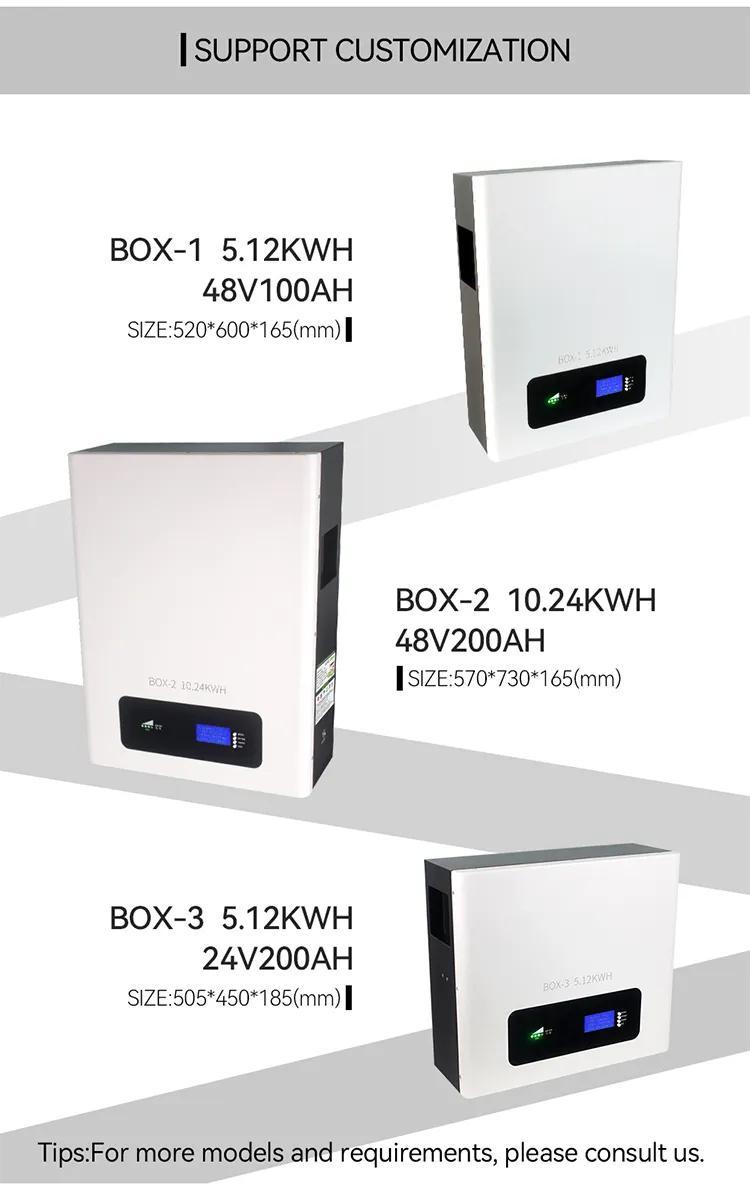

  Model
BOX-1
BOX-2
BOX-3
Battery Type
LiFePO4(LFP)
Nominal Voltage(v)
51.2V
51.2V
25.6V
Nominal Energy(kWh)
5.12kWh
10.24kWh
5.12kWh
Nominal Capacity(Ah)
100Ah
200Ah
200Ah
Design Years
15 Years
Size
520×600×165mm
570×730×165mm
505×450×185mm
Weight
≤55kg
≤95kg
≤55kg
Cycle Life
≥6000 cycles
Operating Voltage Range
40V~58.4V
20V~29.2V
Charging Voltage
DC 58.4V
DC 29.2V
Operating Temperature
-10~55ºC
Warranty
10 Years (2 Years free warranty, rest 8 years pay actual repair costs)
Charge/Discharge Current(A)
Same Port Max. 100A
Internal Resistance
≤40mΩ
Self-Consumption
≤2.5W
Rated Voltage
51.2V
25.6V
Balance current
30~65(MA)
Communication Method
CAN/RS485/RS232(Optional)
Information Storage
500 Strip
Limiting
10/20A(Optional)

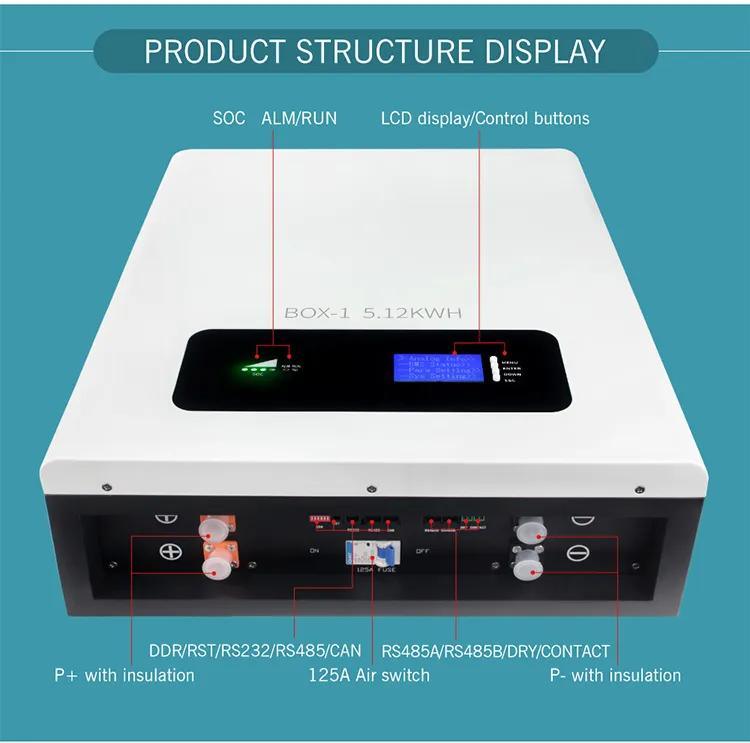

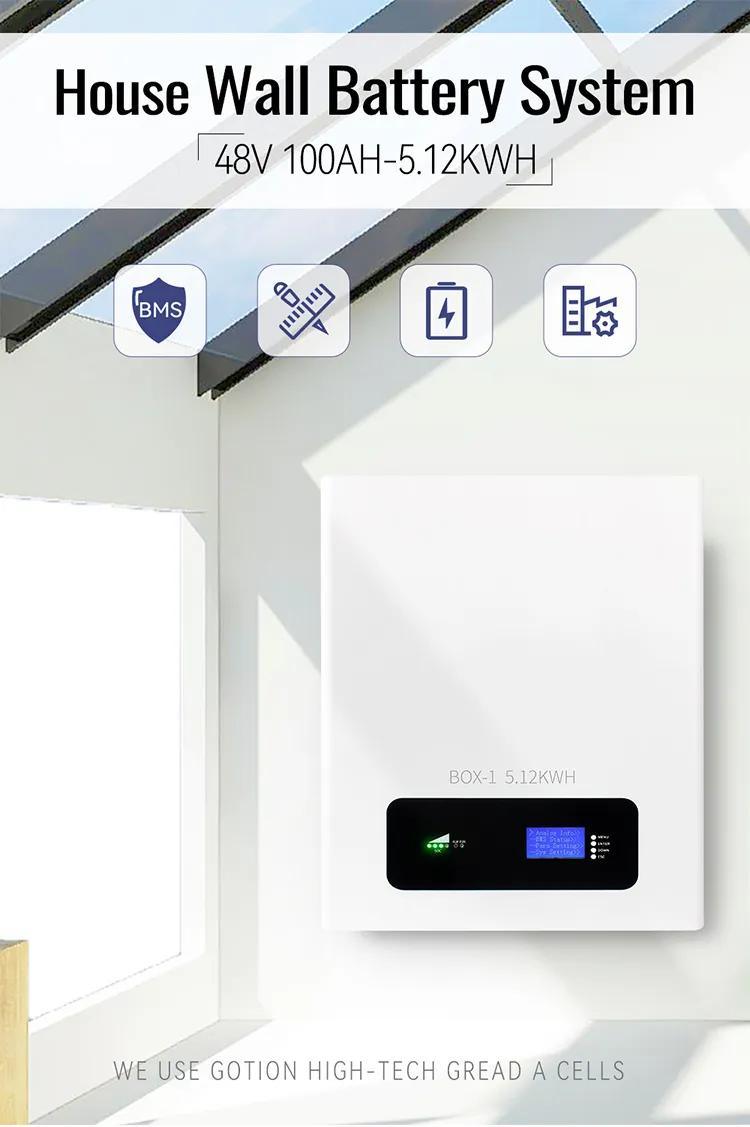

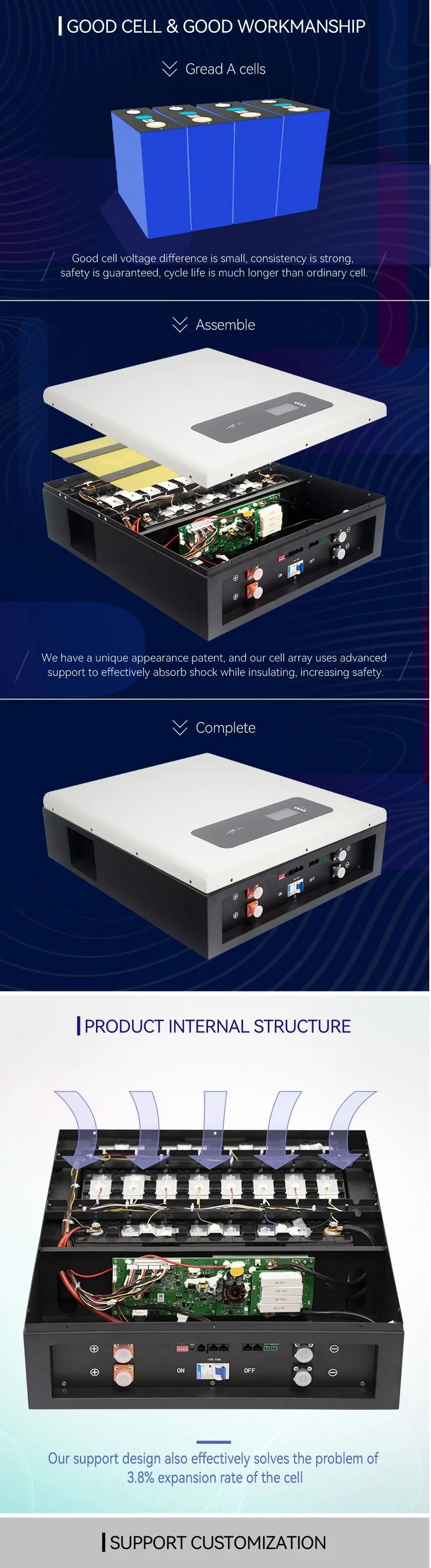

Detailed Photos


51.2V Solar Energy Storage System (Off Grid Solar System&Hybrid Solar System) From 5kwh to 225kwh51.2V Solar Energy Storage System (Off Grid Solar System&Hybrid Solar System) From 5kwh to 225kwh51.2V Solar Energy Storage System (Off Grid Solar System&Hybrid Solar System) From 5kwh to 225kwh

Please Click to get Catalog and Pricelist
51.2V Solar Energy Storage System (Off Grid Solar System&Hybrid Solar System) From 5kwh to 225kwh51.2V Solar Energy Storage System (Off Grid Solar System&Hybrid Solar System) From 5kwh to 225kwh51.2V Solar Energy Storage System (Off Grid Solar System&Hybrid Solar System) From 5kwh to 225kwh
Certifications
51.2V Solar Energy Storage System (Off Grid Solar System&Hybrid Solar System) From 5kwh to 225kwh51.2V Solar Energy Storage System (Off Grid Solar System&Hybrid Solar System) From 5kwh to 225kwh51.2V Solar Energy Storage System (Off Grid Solar System&Hybrid Solar System) From 5kwh to 225kwh51.2V Solar Energy Storage System (Off Grid Solar System&Hybrid Solar System) From 5kwh to 225kwh51.2V Solar Energy Storage System (Off Grid Solar System&Hybrid Solar System) From 5kwh to 225kwh51.2V Solar Energy Storage System (Off Grid Solar System&Hybrid Solar System) From 5kwh to 225kwh

Please Click Here to Get Fast Quotes
Warning



1: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
2: What can you buy from us?
A: lithium-ion single cell, battery pack, photovoltaic panel, indoor and outdoor solar energy storage power system, portable
energy storage power system, etc.
3: Can you have a sample order?
A: Yes, we welcome sample order to test and check quality.
4: What about the lead time?
A: Sample needs 10-15 days, mass production time needs 2-4 weeks, it depends on order quantity.
5: How about you payment and delivery items?
A: Payment items: By T/T, 30% for deposit, and balance all before shipment. For small amount, we also accept payment via PayPal, Western Union.
6: What kind of certificates could you provide for these batteries?
A: We have CE,CB,KC,MSDS,UN38.3 for most our current products, if It's custom-making design, usually no current certificates, we could apply for you if you need, but the related fees should be paid by your side, and if your order is big enough, certificate fees can be refunded.
